Extra 300

General characteristics

• Crew: one pilot

• Capacity: two

• Length: 6.95 m (22 ft 9½ in)

• Wingspan: 7.39 m (24 ft 3 in)

• Height: 2.62 m (8 ft 7¼ in)

• Wing area: 10.44 m² (112.4 ft²)

• Airfoil: symmetrical (no camber), zero incidence, zero dihedral/anhedral

• Empty weight: 682 kg (approx.) (1,500 lb (approx.))

• Useful load: 270 kg (595 lb)

• Loaded weight: 952 kg (2095 lb)

• Max. takeoff weight: 952 kg (2095 lb)

• Fuel capacity: 199.5 l (52.7 U.S. gal)

• Powerplant: 1 × Lycoming AEIO-540-L1B5 MT Propeller composite propeller (3- or 4-blade), 224 kW (300 hp)

Performance

• Never exceed speed: 408 km/h (220 knot, 253 mph)

• Cruise speed: 317 km/h (170 knot, 196 mph)

• Stall speed: 102 km/h (55 knot, 63 mph)

• Range: 944 km with auxiliary fuel (510 nmi, 586 statute mi)

• Service ceiling: 4875 m (16,000 ft)

• Rate of climb: 16 meters/s (3200 ft/min)

• Roll rate : 400 degrees per second

• Maximum g-load : ±10 g

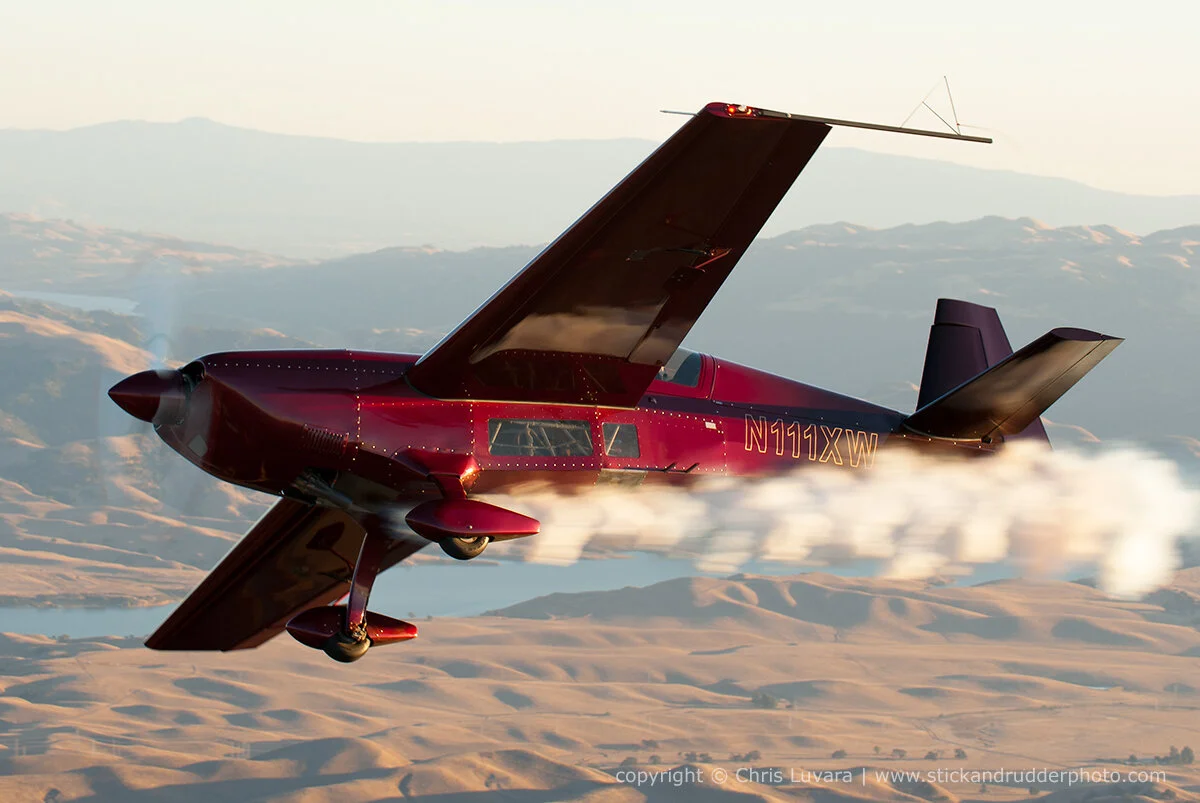

About Extra N111XW

This Extra is S/N 064 and is a mid wing variant. N111XW has a rich history, she started life as N305NL as a plane on the Northern Lights Aerobatic team as “ship 2” where she served as one of six mid wing Extra 300s. The team later switched to the lower wing Extra 300L, and N305NL was sold into the civilian world, along with 5 other mid wing Extras. The original paint job was changed to its current maroon to almost purple, gradient scheme, and the tail number was changed to N111XW. She is a pampered, and well taken care of Extra 300, and she is a phenomenal flyer!
